IDTF1956NBGI8, IDTF1956 Datasheet - Renesas

IDTF1956NBGI8 - Digital Step Attenuator

This document describes the specification for the F1956 Digital Step Attenuator.

The F1956 is part of IDT’s Glitch-FreeTM family of DSAs optimized for the demanding requirements of Base Station (BTS) radio cards and numerous other non-BTS applications.

This device is offered in compact 5 mm x 5 mm 3

IDTF1956NBGI8 Features

* Serial & 7-bit Parallel Interface

* 31.75 dB Range

* 0.25 dB steps

* Glitch-FreeTM: low transient overshoot

* 500 ns settling time

* Ultra linear > 64 dBm IIP3

* Low Insertion Loss < 1.7 dB @ 4 GHz

* Attenuation error < ±0.2 dB @ 4 GHz

* Bi-directional RF use

IDTF1956-Renesas.pdf

This datasheet PDF includes multiple part numbers: IDTF1956NBGI8, IDTF1956. Please refer to the document for exact specifications by model.

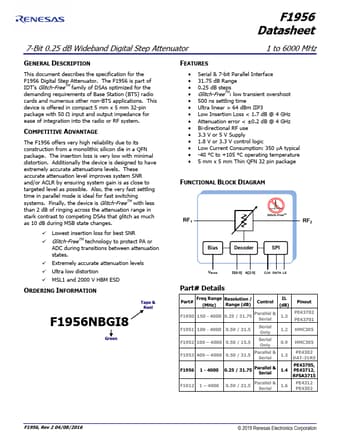

IDTF1956NBGI8 Datasheet Preview Page 2 IDTF1956NBGI8 Datasheet Preview Page 3
