IDTF1951 6-bit 0.5 dB Digital Step Attenuator

Integrated Device Technology

Description

6-bit 0.5 dB Digital Step Attenuator GENERAL .
This document describes the specification for the IDTF1951 Digital Step Attenuator.

📥 Download Datasheet

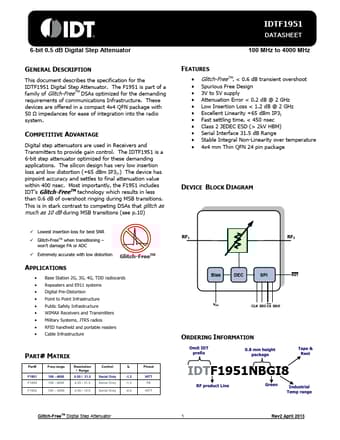

IDTF1951 Datasheet Preview — Preview of IDTF1951 PDF

Datasheet Specifications

Part number: IDTF1951
Manufacturer: Integrated Device Technology
File Size: 2.32 MB
Datasheet: IDTF1951-IntegratedDeviceTechnology.pdf
Description: 6-bit 0.5 dB Digital Step Attenuator

Features

* Glitch-FreeTM, < 0.6 dB transient overshoot
* Spurious Free Design
* 3V to 5V supply
* Attenuation Error < 0.2 dB @ 2 GHz
* Low Insertion Loss < 1.2 dB @ 2 GHz
* Excellent Linearity +65 dBm IP3I
* Fast settling time, < 450 nsec
* Clas

Applications

* The silicon design has very low insertion loss and low distortion (+65 dBm IP3I. ) The device has pinpoint accuracy and settles to final attenuation value within 400 nsec. Most importantly, the F1951 includes IDT’s Glitch-FreeTM technology which results in less than 0.6 dB of overshoot ringing durin
