QS532806 Guaranteed Low Skew 3.3V CMOS Clock Driver/buffer

The QS532806 clock driver/buffer circuit can be used for clock buffering schemes where low skew is a key parameter. The QS532806 offers two banks of five inverting outputs. Designed in IDT's proprietary CMOS process, these devices provide low propagation delay buffering with onchip skew of 0.7ns for.

QS532806 Features

* JEDEC compatible LVTTL level 10 low skew clock outputs Monitor output Clock inputs are 5V tolerant Pinout and function compatible with QS5806 25Ω on-chip resistors for low noise Input hysteresis for better noise margin

QS532806_IntegratedDeviceTechnology.pdf

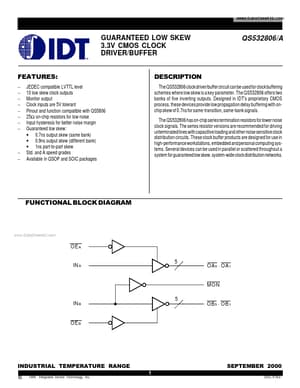

QS532806 Datasheet Preview — Preview of QS532806 PDF

Datasheet Details

Part number:

QS532806

Manufacturer:

Integrated Device Technology

File Size:

104.69 KB

Description:

Guaranteed low skew 3.3v cmos clock driver/buffer.
