QS532807 Description

QS532807 3.3V GUARANTEED LOW SKEW CMOS CLOCK DRIVER/BUFFER INDUSTRIAL TEMPERATURE RANGE GUARANTEED LOW SKEW CMOS CLOCK DRIVER/BUFFER .
The QS532807 clock driver/buffer circuit can be used for clock buffering schemes where low skew is a key parameter.

QS532807 Features

* JEDEC compatible LVTTL level 10 low skew clock outputs Clock input is 5V tolerant Pinout and function compatible with QS5807 25Ω on-chip resistors available for low noise Input hysteresis for better noise margin Guaranteed low sk

📥 Download Datasheet

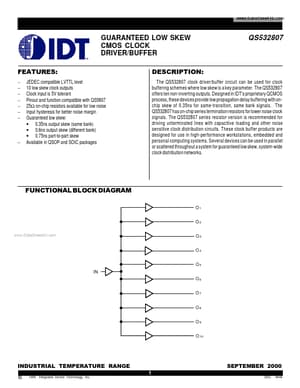

QS532807 Datasheet Preview — Preview of QS532807 PDF

Datasheet Details

Part number: QS532807
Manufacturer: Integrated Device Technology
File Size: 95.04 KB
Datasheet: QS532807_IntegratedDeviceTechnology.pdf
Description: GUARANTEED LOW SKEW CMOS CLOCK DRIVER/BUFFER
