IDT49FCT805, FAST CMOS BUFFER/CLOCK DRIVER

IDT49FCT805/A FAST CMOSBUFFER/CLOCKDRIVER COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGE FAST CMOS BUFFER/CLOCK DRIVER IDT49FCT805/A .
The 49FCT805 is a non-inverting buffer/clock driver built using advanced dual metal CMOS technology.

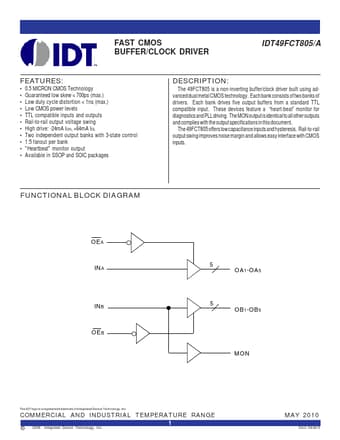

datasheet Preview Page 1 from Datasheet4u.com

IDT49FCT805_IntegratedDeviceTechnology.pdf

IDT49FCT805 Datasheet Preview — Preview of IDT49FCT805 PDF

Datasheet Details

Part number:

IDT49FCT805

Manufacturer:

Integrated Device

File Size:

70.91 KB

Description:

FAST CMOS BUFFER/CLOCK DRIVER

Features

* 0.5 MICRON CMOS Technology
* Guaranteed low skew < 700ps (max. )
* Low duty cycle distortion < 1ns (max. )
* Low CMOS power levels
* TTL compatible inputs and outputs
* Rail-to-rail output voltage swing
* High drive: -24mA IOH, +64mA IOL
