IDT49FCT3805A

CMOS BUFFER/CLOCK DRIVER

IDT49FCT3805A Features

* 0.5 MICRON CMOS Technology

* Guaranteed low skew < 500ps (max.)

* Very low duty cycle distortion < 1.0ns (max.)

* Very low CMOS power levels

* TTL compatible inputs and outputs

* Inputs can be driven from 3.3V or 5V components

* Two independ

IDT49FCT3805A General Description

The FCT3805 is a 3.3 volt, non-inverting clock driver built using advanced dual metal CMOS technology. The device consists of two banks of drivers, each with a 1:5 fanout and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is ident.

IDT49FCT3805A Datasheet (195.99 KB)

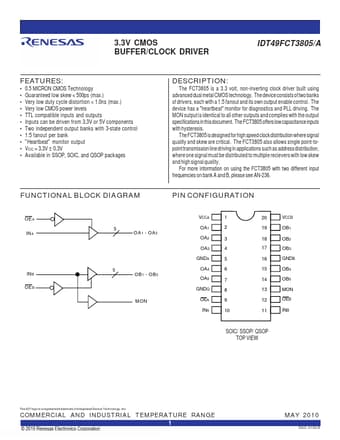

Preview of IDT49FCT3805A PDF

Datasheet Details

Part number:

IDT49FCT3805A

Manufacturer:

Renesas ↗

File Size:

195.99 KB

Description:

Cmos buffer/clock driver.
