IDT79RC32134

RISCore32300TM Family System Controller Chip

IDT79RC32134 Features

* RC32300-family System Controller

* Direct connection between RC32364 and RC32134

* Up to 75 MHz operation

* Drives latched address bus to memory and peripherals

* Direct control of optional external data buffers

* Programmable system watch-dog timers

IDT79RC32134 General Description

The IDT79RC32134 is a high performance system controller chip that supports IDT’s RISCore32300 CPU family. The RC32134 offers a direct connection to IDT’s RC32364 32-bit embedded microprocessor. The RC32134 provides the system logic for boot memory, main memory, I/O, and PCI. It also includes on-chi.

IDT79RC32134 Datasheet (469.10 KB)

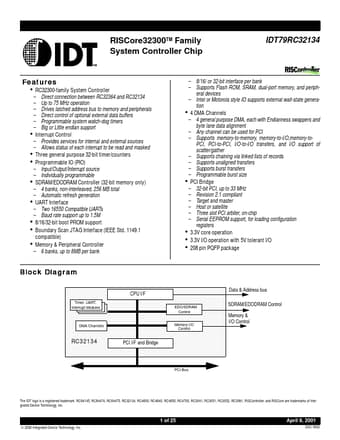

Preview of IDT79RC32134 PDF

Datasheet Details

Part number:

IDT79RC32134

Manufacturer:

Integrated Device

File Size:

469.10 KB

Description:

Riscore32300tm family system controller chip.
