IDT7M1024 - 4K x 36 BiCMOS SYNCHRONOUS DUAL-PORT STATIC RAM MODULE

Integrated Device

📥 Download Datasheet

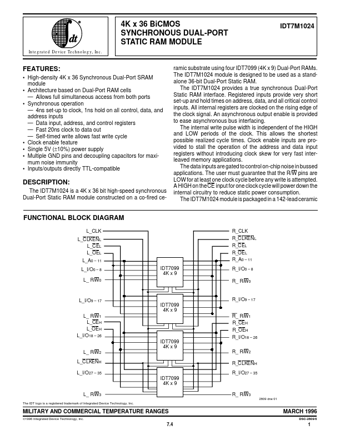

IDT7M1024 Datasheet Preview — Preview of IDT7M1024 PDF

Datasheet Details

Part number: IDT7M1024
Manufacturer: Integrated Device
File Size: 113.84 KB
Datasheet: IDT7M1024_IntegratedDeviceTechnology.pdf
Description: 4K x 36 BiCMOS SYNCHRONOUS DUAL-PORT STATIC RAM MODULE

IDT7M1024 Product details

Description

The IDT7M1024 is a 4K x 36 bit high-speed synchronous Dual-Port Static RAM module constructed on a co-fired ce- ramic substrate using four IDT7099 (4K x 9) Dual-Port RAMs.The IDT7M1024 module is designed to be used as a standalone 36-bit Dual-Port Static RAM.The IDT7M1024 provides a true synchronous Dual-Port Static RAM interface.Registered inputs provide very short set-up and hold times on address, data, and all critical control inputs.All internal registers are clocked on the rising edge.

Features

High-density 4K x 36 Synchronous Dual-Port SRAM module.
Architecture based on Dual-Port RAM cells.
Allows full simultaneous access from both ports.
Synchronous operation.
4ns set-up to clock, 1ns hold on all control, data, and address inputs.
Data input, address, and control registers.
Fast 20ns clock to data out.
Self-timed write allows fast write cycle.
Clock enable feature.
Single 5V (±10%) power suppl.
