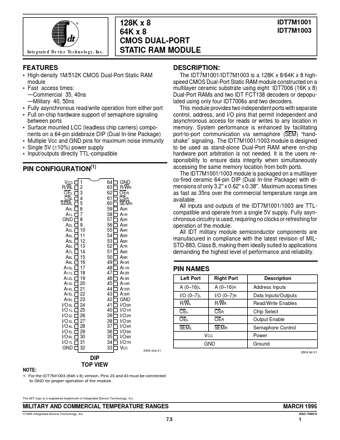

IDT7M1001 Datasheet Preview — Preview of IDT7M1001 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IDT7M1001
Manufacturer: Integrated Device
File Size: 171.85 KB
Datasheet: IDT7M1001_IntegratedDeviceTechnology.pdf
Description: 128K x 8 64K x 8 CMOS DUAL-PORT STATIC RAM MODULE

IDT7M1001 Product details

Description

IDT7M1001 IDT7M1003.

Features

High-density 1M/512K CMOS Dual-Port Static RAM module.
Fast access times:.
Commercial 35, 40ns.
Military 40, 50ns.
Fully asynchronous read/write operation from either port.
Full on-chip hardware support of semaphore signaling between ports.
Surface mounted LCC (leadless chip carriers) components on a 64-pin sidebraze DIP (Dual In-line Package).
Multiple Vcc and GND pins for maximum noise immunity.
Single 5V (± 10%) p.
