IDTQS3VH126 Datasheet - Integrated Device

IDTQS3VH126 2.5V / 3.3V QUAD ACTIVE HIGH/ HIGH BANDWIDTH SWITCH

The QS3VH126 is a high bandwidth bus switch. The QS3VH126 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of individual LVTTL-compatible active high Output Enable signals for bidirectional data flow with no .
IDTQS3VH126 2.5V / 3.3V QUAD ACTIVE HIGH, HIGH BANDWIDTH SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V QUAD ACTIVE HIGH, HIGH BANDWIDTH SWITCH IDTQS3VH126 N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state 5V tolerant I/Os Low RON - 4Ω typical Flat RON characteristics over operating range Rail-.

IDTQS3VH126_IntegratedDeviceTechnology.pdf

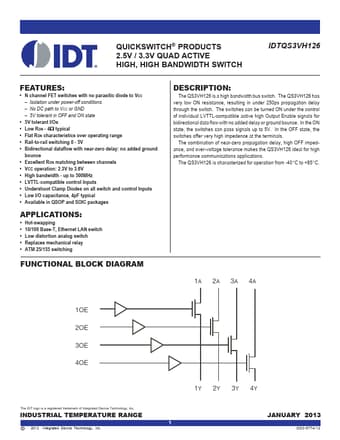

Preview of IDTQS3VH126 PDF
IDTQS3VH126 Datasheet Preview Page 2 IDTQS3VH126 Datasheet Preview Page 3

Datasheet Details

Part number:

IDTQS3VH126

Manufacturer:

Integrated Device

File Size:

244.72 KB

Description:

2.5v / 3.3v quad active high/ high bandwidth switch.
