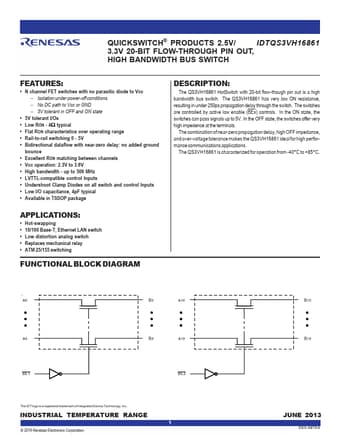

IDTQS3VH16861 datasheet, switch equivalent, Renesas

IDTQS3VH16861 Features and benefits

* N channel FET switches with no parasitic diode to Vcc − Isolation under power-off conditions − No DC path to Vcc or GND − 5V tolerant in OFF and ON state
* 5V .

IDTQS3VH16861 Application

* Hot-swapping
* 10/100 Base-T, Ethernet LAN switch
* Low distortion analog switch
* Replaces mechanica.

IDTQS3VH16861 Description

The QS3VH16861 HotSwitch with 20-bit flow-though pin out is a high bandwidth bus switch. The QS3VH16861 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches are controlled by active low enable (BEx).

Image gallery
