IDTQS3VH125

HIGH BANDWIDTH BUS SWITCH

Renesas

IDTQS3VH125 Features

* N channel FET switches with no parasitic diode to VCC

* Isolation under power-off conditions

* No DC path to VCC or GND

* 5V tolerant in OFF and ON state

* 5V tolerant I/Os

* Low RON - 4Ω typical

* Flat RON characteristics over operating ran

IDTQS3VH125 General Description

The QS3VH125 is a high bandwidth, Quad bus switch. The QS3VH125 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of individual LVTTL-compatible active low Output Enable signals for bidirectional data flow with.

IDTQS3VH125 Datasheet (401.40 KB)

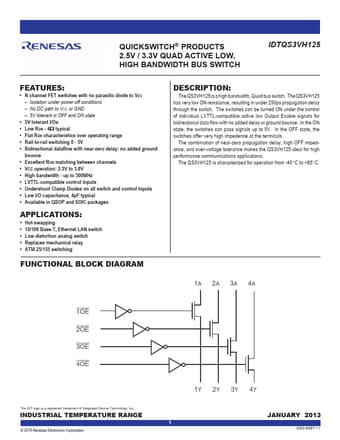

IDTQS3VH125 Datasheet Preview — Preview of IDTQS3VH125 PDF
