IDTQS3VH2245, 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH

IDTQS3VH2245 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWI.

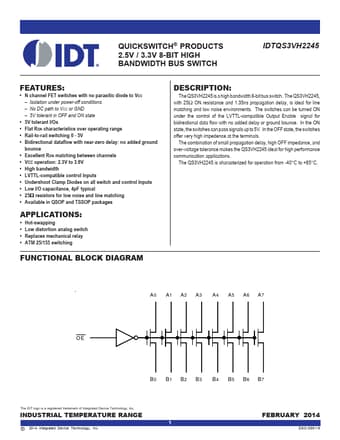

datasheet Preview Page 1 from Datasheet4u.com

IDTQS3VH2245-IntegratedDeviceTechnology.pdf

IDTQS3VH2245 Datasheet Preview — Preview of IDTQS3VH2245 PDF

Datasheet Details

Part number:

IDTQS3VH2245

Manufacturer:

Integrated Device Technology

File Size:

260.35 KB

Description:

2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH

Features

* N channel FET switches with no parasitic diode to VCC
* Isolation under power-off conditions
* No DC path to VCC or GND
* 5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Flat RON characteristics over operating range
* Rail-to-rail switc

Applications

* Hot-swapping
* Low distortion analog switch
* Replaces mechanical relay
