IDTQS3VH2861 - HIGH BANDWIDTH SWITCH

IDTQS3VH2861 Description

IDTQS3VH2861 2.5V / 3.3V 10-BIT ACTIVE HIGH AND LOW ENABLE, HIGH BANDWIDTH SWITCH INDUSTRIALTEMPERATURERANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V 10-BI.

IDTQS3VH2861 Features

* N channel FET switches with no parasitic diode to VCC
* Isolation under power-off conditions
* No DC path to VCC or GND
* 5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Flat RON characteristics over operating range
* Rail-to-rail switc

IDTQS3VH2861 Applications

* Hot-swapping
* Low distortion analog switch
* Replaces mechanical relay
* ATM 25/155 switching DESCRIP

📥 Download Datasheet

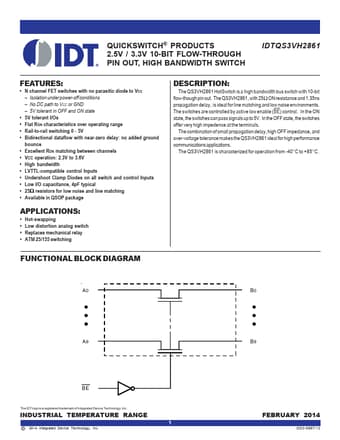

Preview of IDTQS3VH2861 PDF
datasheet Preview Page 2 datasheet Preview Page 3
