IDTQS3VH126

HIGH BANDWIDTH SWITCH

Renesas

IDTQS3VH126 Features

* N channel FET switches with no parasitic diode to VCC

* Isolation under power-off conditions

* No DC path to VCC or GND

* 5V tolerant in OFF and ON state

* 5V tolerant I/Os

* Low RON - 4Ω typical

* Flat RON characteristics over operating ran

IDTQS3VH126 General Description

The QS3VH126 is a high bandwidth bus switch. The QS3VH126 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of individual LVTTL-compatible active high Output Enable signals for bidirectional data flow with no a.

IDTQS3VH126 Datasheet (400.14 KB)

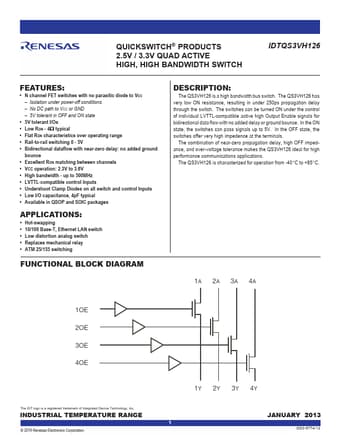

IDTQS3VH126 Datasheet Preview — Preview of IDTQS3VH126 PDF

Datasheet Details

Part number:

IDTQS3VH126

Manufacturer:

Renesas ↗

File Size:

400.14 KB

Description:

High bandwidth switch.
