IS41LV44052, IS41C4405x, 4M x 4 (16-MBIT) DYNAMIC RAM

IS41C4405X IS41LV4405X SERIES 4M x 4 (16-MBIT) DYNAMIC RAM WITH FAST PAGE MODE ISSI® www.DataSheet4U.com JUNE 2001 .
The ISSI 4405x Series is a 4,194,304 x 4-bit high-performance CMOS Dynamic Random Access Memory.

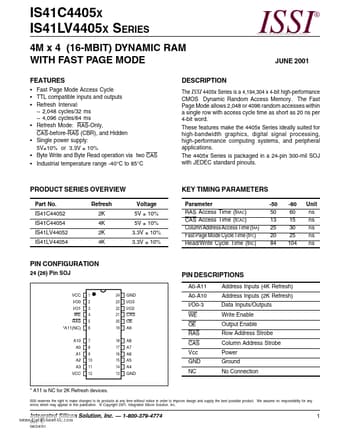

datasheet Preview Page 1 from Datasheet4u.com

IS41C4405x_IntegratedSiliconSolution.pdf

IS41LV44052 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS41LV44052, IS41C4405x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS41LV44052, IS41C4405x

Manufacturer:

Integrated Silicon Solution

File Size:

170.88 KB

Description:

4M x 4 (16-MBIT) DYNAMIC RAM

Note:

This datasheet PDF includes multiple part numbers: IS41LV44052, IS41C4405x.
Please refer to the document for exact specifications by model.

Features

* Fast Page Mode Access Cycle
* TTL compatible inputs and outputs
* Refresh Interval:
* 2,048 cycles/32 ms
* 4,096 cycles/64 ms
* Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden
* Single power supply: 5V±10% or 3.3V ± 10%
* Byt

Applications

* The 4405x Series is packaged in a 24-pin 300-mil SOJ with JEDEC standard pinouts. PRODUCT SERIES OVERVIEW Part
