IS45S16100E - 512K Words x 16 Bits x 2 Banks 16Mb SYNCHRONOUS DYNAMIC RAM

Product Overview

Integrated Silicon Solution

📥 Download Datasheet

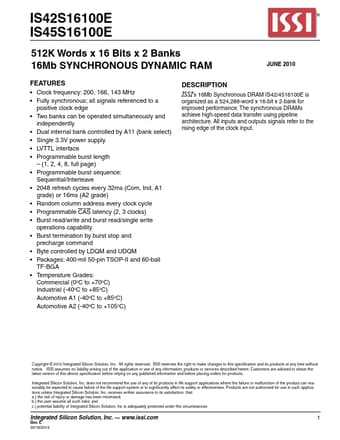

IS45S16100E 512K Words x 16 Bits x 2 Banks 16Mb SYNCHRONOUS DYNAMIC RAM by Integrated Silicon Solution - Datasheet Preview — Datasheet preview – IS45S16100E

Datasheet Details

Part number	IS45S16100E
Manufacturer	Integrated Silicon Solution
File Size	1.07 MB
Description	512K Words x 16 Bits x 2 Banks 16Mb SYNCHRONOUS DYNAMIC RAM
Datasheet	IS45S16100E Datasheet
Additional preview pages of the IS45S16100E datasheet.

Product details

Features

Clock frequency: 200, 166, 143 MHz.
Fully synchronous; all signals referenced to a positive clock edge.
Two banks can be operated simultaneously and independently.
Dual internal bank controlled by A11 (bank select).
Single 3.3V power supply.
LVTTL interface.
Programmable burst length.
(1, 2, 4, 8, full page).
Programmable burst sequence: Sequential/Interleave.
2048 refresh cycles every 32ms (Com,.
