IS49NLC18320, IS49NLC96400 Datasheet - Integrated Silicon Solution

IS49NLC18320 Common I/O RLDRAM 2 Memory

1.1 576Mb (64Mx9) Common I/O BGA Ball‐out (Top View)  1 A VREF B VDD C VTT D A221 E A21 F A5 G A8 H BA2 J NF2 K DK L REF# M WE# N A18 P A15 R VSS T VTT U VDD V VREF 2 VSS DNU3 DNU3 DNU3 DNU3 DNU3 A6 A9 NF2 DK# CS# A16 DNU3 DNU3 DNU3 DNU3 DNU3 ZQ 3 VEXT DNU3 DNU3 DNU3 DNU3 DNU3 A7 VSS VDD VDD VSS.

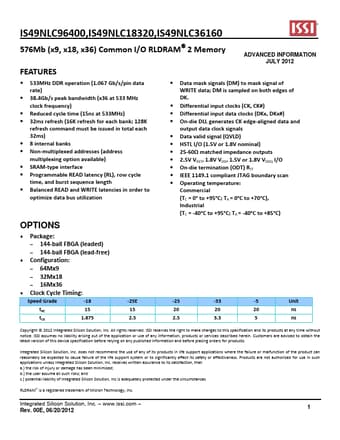

IS49NLC18320 Features

* ADVANCED INFORMATION JULY 2012

* 533MHz DDR operation (1.067 Gb/s/pin data  rate)

* 38.4Gb/s peak bandwidth (x36 at 533 MHz  clock frequency)

* Reduced cycle time (15ns at 533MHz)

* 32ms refresh (16K refresh for each bank; 128K  refresh command must be issued in total each  32ms

IS49NLC96400-IntegratedSiliconSolution.pdf

This datasheet PDF includes multiple part numbers: IS49NLC18320, IS49NLC96400. Please refer to the document for exact specifications by model.
IS49NLC18320 Datasheet Preview Page 2 IS49NLC18320 Datasheet Preview Page 3

Datasheet Details

Part number:

IS49NLC18320, IS49NLC96400

Manufacturer:

Integrated Silicon Solution

File Size:

633.13 KB

Description:

Common i/o rldram 2 memory.

Note:

This datasheet PDF includes multiple part numbers: IS49NLC18320, IS49NLC96400.
Please refer to the document for exact specifications by model.
