IS49NLC36160A, IS49NLC96400A Datasheet - Integrated Silicon Solution

IS49NLC36160A Common I/O RLDRAM 2 Memory

1.1 576Mb (64Mx9) Common I/O BGA Ball-out (Top View) 1 2 3 4 5678 A VREF VSS VEXT VSS B VDD DNU3 DNU3 VSSQ C VTT DNU3 DNU3 VDDQ D A221 DNU3 DNU3 VSSQ E A21 DNU3 DNU3 VDDQ F A5 DNU3 DNU3 VSSQ G A8 A6 A7 VDD H BA2 A9 VSS VSS J NF2 NF2 VDD VDD K DK DK# VDD VDD .

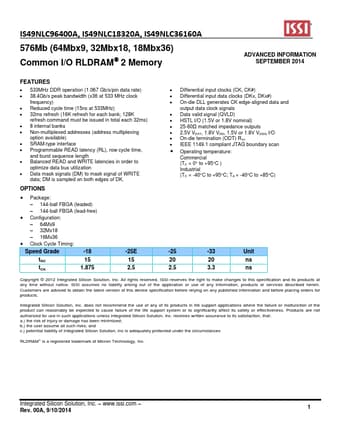

IS49NLC36160A Features

* 533MHz DDR operation (1.067 Gb/s/pin data rate)

* 38.4Gb/s peak bandwidth (x36 at 533 MHz clock frequency)

* Reduced cycle time (15ns at 533MHz)

* 32ms refresh (16K refresh for each bank; 128K refresh command must be issued in total each 32ms)

* 8 internal banks

* Non-multi

IS49NLC96400A-IntegratedSiliconSolution.pdf

IS49NLC36160A Datasheet Preview — This datasheet PDF includes multiple part numbers: IS49NLC36160A, IS49NLC96400A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS49NLC36160A, IS49NLC96400A

Manufacturer:

Integrated Silicon Solution

File Size:

759.43 KB

Description:

Common i/o rldram 2 memory.

Note:

This datasheet PDF includes multiple part numbers: IS49NLC36160A, IS49NLC96400A.
Please refer to the document for exact specifications by model.
