IS49NLC96400

Common I/O RLDRAM 2 Memory

IS49NLC96400 Features

* ADVANCED INFORMATION JULY 2012

* 533MHz DDR operation (1.067 Gb/s/pin data  rate)

* 38.4Gb/s peak bandwidth (x36 at 533 MHz  clock frequency)

* Reduced cycle time (15ns at 533MHz)

* 32ms refresh (16K refresh for each bank; 128K  refresh command must be issued in total each  32ms

IS49NLC96400 General Description

1.1 576Mb (64Mx9) Common I/O BGA Ball‐out (Top View)  1 A VREF B VDD C VTT D A221 E A21 F A5 G A8 H BA2 J NF2 K DK L REF# M WE# N A18 P A15 R VSS T VTT U VDD V VREF 2 VSS DNU3 DNU3 DNU3 DNU3 DNU3 A6 A9 NF2 DK# CS# A16 DNU3 DNU3 DNU3 DNU3 DNU3 ZQ 3 VEXT DNU3 DNU3 DNU3 DNU3 DNU3 A7 VSS VDD VDD VSS.

IS49NLC96400 Datasheet (633.13 KB)

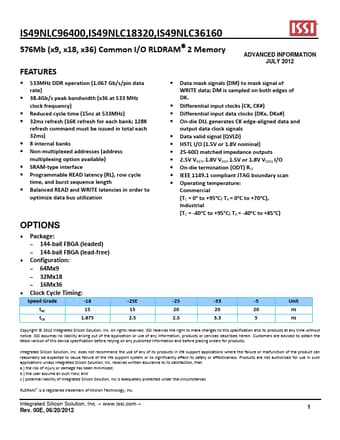

Preview of IS49NLC96400 PDF

Datasheet Details

Part number:

IS49NLC96400

Manufacturer:

Integrated Silicon Solution

File Size:

633.13 KB

Description:

Common i/o rldram 2 memory.
