83C196MC - INDUSTRIAL MOTOR CONTROL MICROCONTROLLER

83C196MC Description

www.DataSheet4U.com 8XC196MC INDUSTRIAL MOTOR CONTROL MICROCONTROLLER 87C196MC 16 Kbytes of On-Chip OTPROM 87C196MC ROM 16 Kbytes of On-Chip Factory-.
External Memory or I O Internal ROM EPROM or External Memory (Determined by EA) Reserved Must contain FFH (Note 5) PTS Vectors Upper Interrupt Vectors.

83C196MC Features

* has two other alternate functions ACH11 and P1 3 The programming voltage is applied to this pin It is

83C196MC Applications

* This peripheral allows for pulse width modulation three phase sine wave generation with minimal CPU intervention It generates 3 complementary non-overlapping PWM pulses with resolutions of 0 125 ms (edge trigger) or 0 250 ms (centered) The 8XC196MC has 16 Kbytes on-chip OTPROM ROM and 488 bytes of o

📥 Download Datasheet

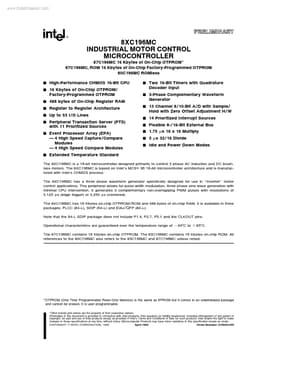

Preview of 83C196MC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
83C196MC
Manufacturer
Intel Corporation
File Size
303.98 KB
Datasheet
83C196MC_IntelCorporation.pdf
Description
INDUSTRIAL MOTOR CONTROL MICROCONTROLLER
