S80C196KB16, S80C196KB Datasheet - Intel Corporation

S80C196KB16 - COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER

External Memory or I O Internal ROM EPROM or External Memory (Determined by EA) Reserved Must contain FFH (Note 5) Upper Interrupt Vectors ROM EPROM Security Key Reserved Must contain FFH (Note 5) 270909 * 2 Address 0FFFFH 04000H 3FFFH 2080H 207FH 2040H 203FH 2030H 202FH 2020H 201FH 201AH 2

8XC196KB 8XC196KB16 COMMERCIAL EXPRESS CHMOS MICROCONTROLLER Y 8 Kbytes of On-Chip ROM OTP Available 232 Byte Register File Register-to-Register Architecture 28 Interrupt Sources 16 Vectors 1 75 ms 16 x 16 Multiply (16 MHz) 3 0 ms 32 16 Divide (16 MHz) Powerdown and Idle Modes Five 8-Bit I O Ports 16-Bit Watchdog Timer 12 MHz and 16 MHz Available Dedicated 15-Bit Baud Rate Generator Y Dynamically Configurable 8-Bit or 16-Bit Buswidth Full Duplex Serial Port High Speed I O Subsystem 16-Bit Tim

S80C196KB16 Features

* red with H

S80C196KB_IntelCorporation.pdf

This datasheet PDF includes multiple part numbers: S80C196KB16, S80C196KB. Please refer to the document for exact specifications by model.

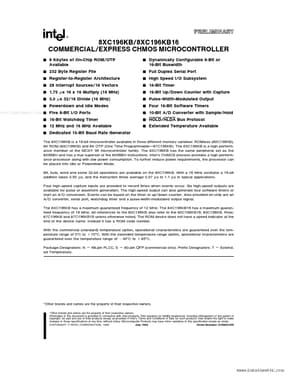

S80C196KB16 Datasheet Preview Page 2 S80C196KB16 Datasheet Preview Page 3

Datasheet Details

Part number:

S80C196KB16, S80C196KB

Manufacturer:

Intel Corporation

File Size:

331.06 KB

Description:

Commercial/express chmos microcontroller.

Note:

This datasheet PDF includes multiple part numbers: S80C196KB16, S80C196KB.
Please refer to the document for exact specifications by model.
