S80C196KC COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER

External Memory or I O Internal ROM OTPROM or External Memory (Determined by EA) Reserved Must contain FFH (Note 5) PTS Vectors Upper Interrupt Vectors ROM OTPROM Security Key Reserved Must contain FFH (Note 5) 270942 * 43 Address 0FFFFH 06000H 5FFFH 2080H 207FH 205EH 205DH 2040H 203FH 2030.

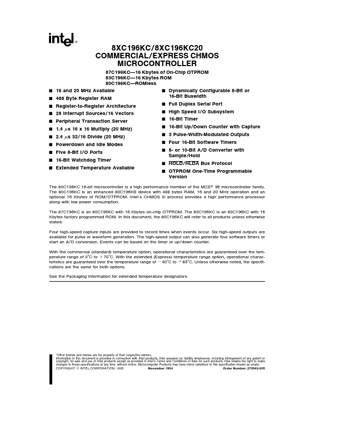

8XC196KC 8XC196KC20 COMMERCIAL EXPRESS CHMOS MICROCONTROLLER 87C196KC 83C196KC 80C196KC 16 and 20 MHz Available 488 Byte Register RAM 28 Interrupt Sources 16 Vectors Peripheral Transaction Server 1 4 ms 16 x 16 Multiply (20 MHz) 2 4 ms 32 16 Divide (20 MHz) Powerdown and Idle Modes Five 8-Bit I O Ports 16-Bit Watchdog Timer Extended Temperature Available 16 Kbytes of On-Chip OTPROM 16 Kbytes ROM ROMless Y Dynamically Configurable 8-Bit or 16-Bit Buswidth Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Reg.

S80C196KC Features

* MAXIMUM RATINGS Ambient
