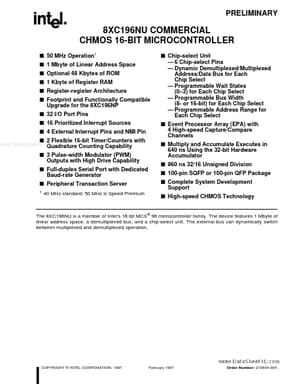

PRELIMINARY 8XC196NU COMMERCIAL CHMOS 16-BIT MICROCONTROLLER s 50 MHz Operation† s 1 Mbyte of Linear Address Space s Optional 48 Kbytes of ROM s 1 Kbyte of Register RAM s Register-register Architecture s Footprint and Functionally Compatible Upgrade for the 8XC196NP s 32 I/O Port Pins s 16 Prioritized Interrupt Sources s 4 External Interrupt Pins and NMI Pin www.DataSheet4U.com Quadrature Counting Capability s Chip-select Unit 6 Chip-select Pins Dynamic Demultiplexed/Multip

S80C196NU Features

* 1 Mbyte of linear address space, a demultiplexed bus, and a chip-select unit. The external bus can dynamically switch between multiplexed and demultiplexed operation. COPYRIGHT © INTEL CORPORATION, 1997 February 1997 Order Number: 272644-004 www.DataSheet4U.com Information in this document is p
