Part number:
TP28F010
Manufacturer:
Intel
File Size:
877.53 KB
Description:
1024k (128k x 8) cmos flash memory.
Datasheet Details
Part number:
TP28F010
Manufacturer:
Intel
File Size:
877.53 KB
Description:
1024k (128k x 8) cmos flash memory.

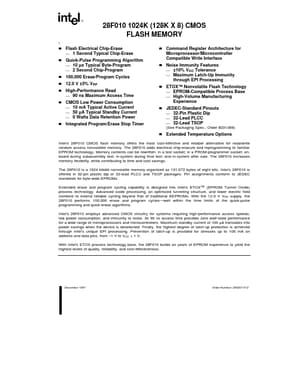

TP28F010, 1024K (128K x 8) CMOS FLASH MEMORY
E 28F010 1024K (128K X 8) CMOS FLASH MEMORY 8 n Flash Electrical Chip-Erase 1 Second Typical Chip-Erase n Quick-Pulse Programming Algorithm 10 µs Typical Byte-Program 2 Second Chip-Program n 100,000 Erase/Program Cycles n 12.0 V ±5% VPP n High-Performance Read 90 ns Maximum Access Time n CMOS Low Power Consumption 10 mA Typical Active Current 50 µA Typical Standby Current 0 Watts Data Retention Power n Integrated Program/Erase Stop Timer n Command Register Architecture for Micro
TP28F010 Features
* ±10% VCC Tolerance Maximum Latch-Up Immunity through EPI Processing n ETOX™ Nonvolatile Flash Technology EPROM-Compatible Process Base High-Volume Manufacturing Experience n JEDEC-Standard Pinouts 32-Pin Plastic Dip 32-Lead PLCC 32-Lead TSOP (See Packaging Spec., Order #231369) n Exten
