2N6453 Datasheet, Jfet, InterFET

2N6453 Features

  • Jfet
  • InterFET N0132L Geometry
  • Low noise: 1.0 nV/√Hz typical
  • High gain: 32mS typical
  • Low gate leakage: 750fA typical @10V
  • Typical IDSS: 25mA

PDF File Details

Part number:

2N6453

Manufacturer:

InterFET

File Size:

702.43kb

Download:

📄 Datasheet

Description:

N-channel jfet. The -25V InterFET 2N6453 and 2N6454 are targeted for sensitive amplifier stages for mid-frequencies designs. Gate leakages are typica

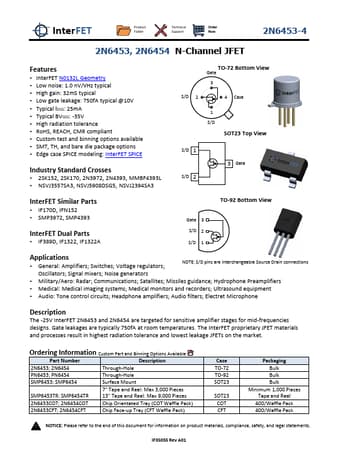

Datasheet Preview: 2N6453 📥 Download PDF (702.43kb)
Page 2 of 2N6453 Page 3 of 2N6453

2N6453 Application

  • Applications
  • General: Amplifiers; Switches; Voltage regulators; NOTE: S/D pins are interchangeable Source Drain connections Oscillators;

TAGS

2N6453
N-Channel
JFET
InterFET
