P1086 Datasheet, Jfet, InterFET

P1086 Features

  • Jfet
  • InterFET P0099F Geometry
  • Low Noise: 8 nV/√Hz Typical
  • Low Rds(on): 75 Ohms Maximum (P1086)
  • RoHS Compliant
  • SMT, TH, and Bare Die Package

PDF File Details

Part number:

P1086

Manufacturer:

InterFET

File Size:

354.68kb

Download:

📄 Datasheet

Description:

P-channel jfet. The 30V InterFET P1086 and P1087 JFET’s are targeted for low noise switching and chopper applications. Source 1 Drain 2 SOT23 Top V

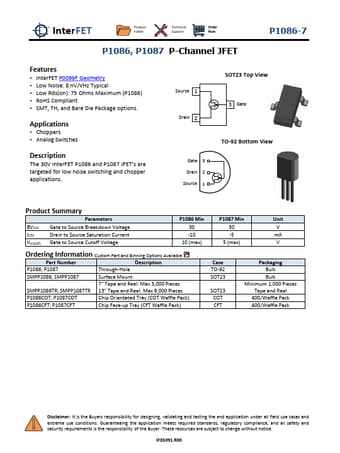

Datasheet Preview: P1086 📥 Download PDF (354.68kb)
Page 2 of P1086 Page 3 of P1086

P1086 Application

  • Applications
  • Choppers
  • Analog Switches Description The 30V InterFET P1086 and P1087 JFET’s are targeted for low noise switching a
