12TQ035 SCHOTTKY RECTIFIER

12TQ035 Description

Bulletin PD-20239 rev.B 12/01 SCHOTTKY RECTIFIER 12TQ 12TQS 15 Amp IF(AV) = 15Amp VR = 35 to 45V Major Ratings and Characteristics Characteristi.
Features The 12TQ Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

12TQ035 Applications

* are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. 150° C TJ operation High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Very low forward voltage drop High frequency operation Guard ring for enha

📥 Download Datasheet

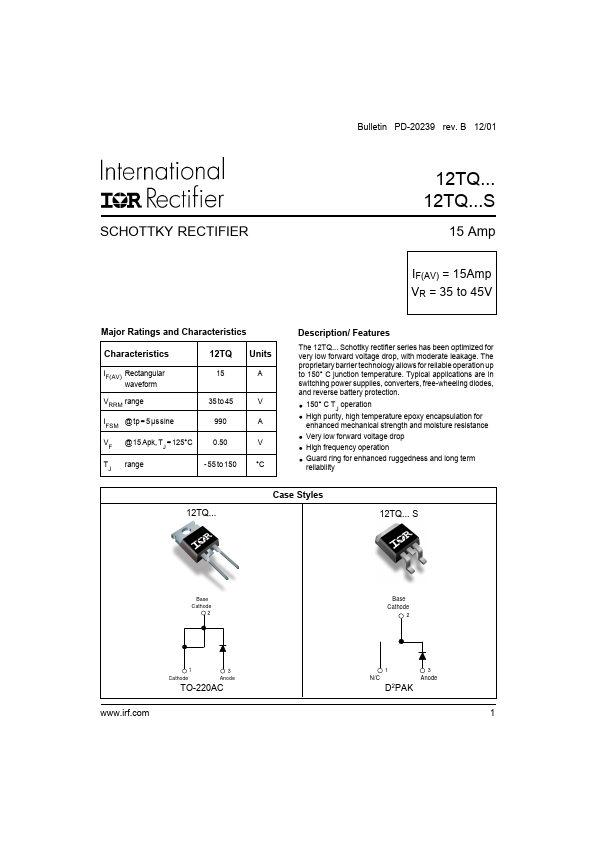

Preview of 12TQ035 PDF

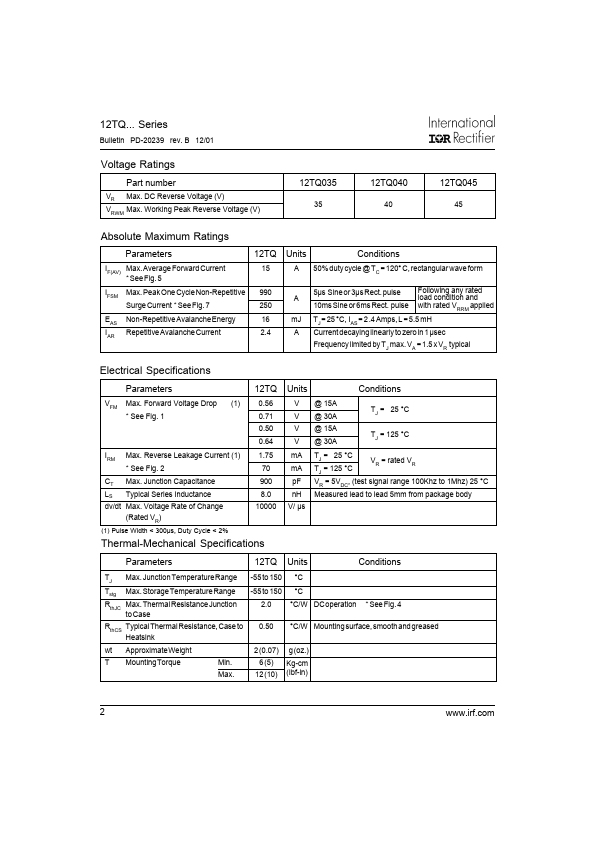

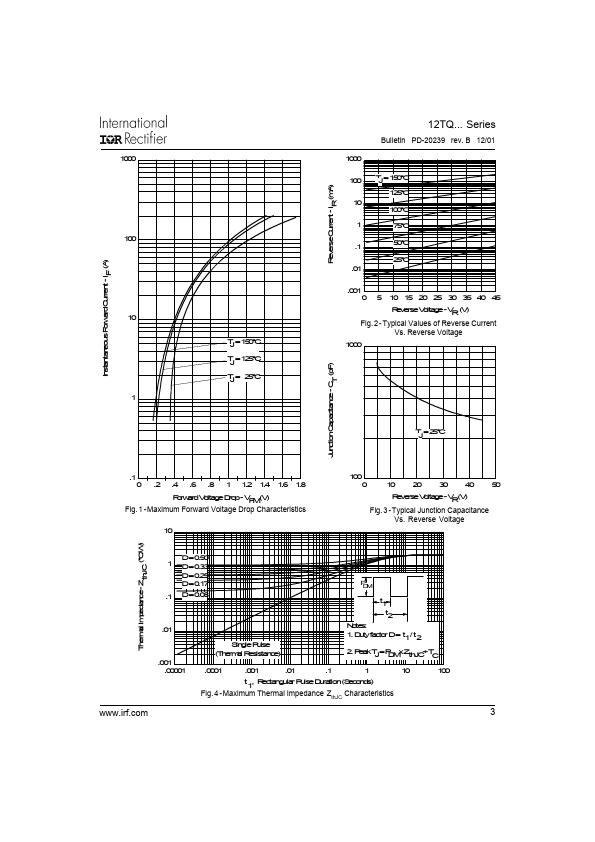

datasheet Preview Page 2 datasheet Preview Page 3
