16SCYQ030C - SCHOTTKY RECTIFIER

Datasheet Summary

Features

  • The 16SCYQ030C center tap Schottky rectifier has been expressly designed to meet the rigorous requirements of hirel environments. It is packaged in the hermetic isolated TO-257AA package. The device's forward voltage drop and reverse leakage current are optimized for the lowest power loss and the highest circuit efficiency for typical high frequency switching power supplies and resonent power converters. Full MIL-PRF-19500 quality conformance testing is available on source control drawings to TX.

📥 Download Datasheet

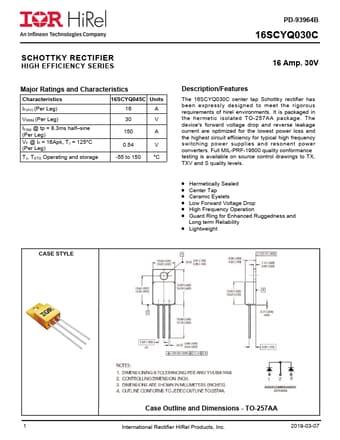

Datasheet preview – 16SCYQ030C

📁 Similar Datasheet

  • 16S45 - Schottky barrier diode (Jingdao)
  • 16S45T - Switch mode power supplies and high frequency DC-DC converter (Jingdao)
  • 16SEP330M - SEP Series Standard radial lead type Capacitor (Sanyo Semiconductor)
  • 16SEPC100M - Conductive Polymer Aluminum Solid Capacitors (Panasonic)
  • 16SEPC100MW - Conductive Polymer Aluminum Solid Capacitors (Panasonic)
  • 16SEPC150MD - Conductive Polymer Aluminum Solid Capacitors (Panasonic)
  • 16SEPC180M - Conductive Polymer Aluminum Solid Capacitors (Panasonic)
  • 16SEPC180MX - Conductive Polymer Aluminum Solid Capacitors (Panasonic)
  • 16SEPC220MD - Conductive Polymer Aluminum Solid Capacitors (Panasonic)
  • 16SEPC270M - Aluminum Solid Capacitors (Sanyo Semiconductor)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD-93964B 16SCYQ030C SCHOTTKY RECTIFIER HIGH EFFICIENCY SERIES 16 Amp. 30V Major Ratings and Characteristics   Characteristics  16SCYQ045C Units  IF(AV) (Per Leg) 16 A VRRM (Per Leg) 30 V IFSM @ tp = 8.3ms half–sine (Per Leg) VF @ IF = 16Apk, TJ = 125°C (Per Leg) 150 0.54 A V TJ, TSTG Operating and storage -55 to 150 °C Description/Features The 16SCYQ030C center tap Schottky rectifier has been expressly designed to meet the rigorous requirements of hirel environments. It is packaged in the hermetic isolated TO-257AA package. The device's forward voltage drop and reverse leakage current are optimized for the lowest power loss and the highest circuit efficiency for typical high frequency switching power supplies and resonent power converters.
