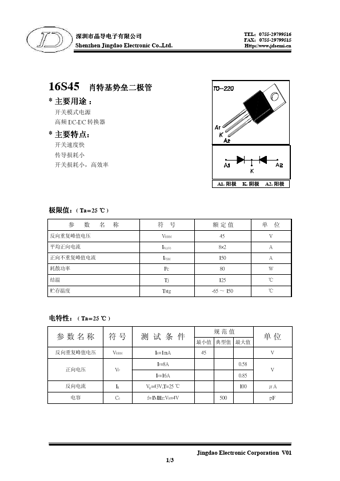

16S45
* ：
DC-DC
* ：
，
A1. K. A2.
：( Ta=25 ℃ )
VRRM IF(AV) IFSM Pc Tj Tstg
45 8×2 150 80 125 -65 ～ 150
V A A W ℃ ℃
： ( Ta=25 ℃ )
VRRM
VF
IR Cd
IR=1mA IF=8A IF=16A VR=43V,T=25 ℃ f=1MHz:VR=4V
45 0.58 0.85 100 500
V
V
μA pF
Jingdao Electronic Corporation V01 1/3
Shenzhen Jingdao Electronic Co.,Ltd.
TEL：0755-29799516 FAX：0755-29799515
Http://www.jdsemi.cn
IR[mA]
, IF[A]
CJ[pF]
VF[V]
1.Typical Forward Voltage Characteristics (per diode)
VR[V]
2.Typical Reverse Currentvs. Reverse Voltage (per diode)
[ ℃ /W]
VR[V]
3.Typical Junction Capacitance(per diode)
[s]
4.Thermal Impedance Characteristics (per diode)
IFSM[A]
T[ ℃ ]
5.
16S45 Datasheet
