16TTS16S, 16TTS08S - SURFACE MOUNTABLE PHASE CONTROL SCR

16TTS16S Description

Bulletin I2105 rev.D 12/98 SAFEIR Series 16TTS..S SURFACE MOUNTABLE PHASE CONTROL SCR .
Features The 16TTS.

16TTS16S Applications

* The glass passivation technology used has reliable operation up to 125° C junction temperature. VT < 1.4V @ 10A ITSM = 200A VRRM = 800 to 1600V Typical applications are in input rectification (soft start) and these products are designed to be used with International Rectifier input diodes, switch

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 16TTS16S, 16TTS08S. Please refer to the document for exact specifications by model.

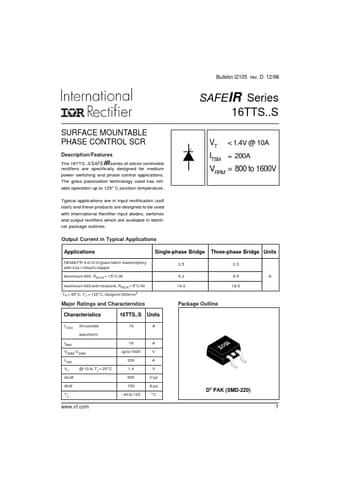

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
16TTS16S, 16TTS08S
Manufacturer
International Rectifier
File Size
97.86 KB
Datasheet
16TTS08S-InternationalRectifier.pdf
Description
SURFACE MOUNTABLE PHASE CONTROL SCR
Note
This datasheet PDF includes multiple part numbers: 16TTS16S, 16TTS08S.
Please refer to the document for exact specifications by model.
