16TTS16 - SILICON CONTROLLED RECTIFIERS

16TTS16 Description

PP0640SA - P16PT3TS51060SC 16A SERIES STANDARD SILICON CONTROLLED RECTIFIERS .
The 16TTS16 SCR is suitable to fit modes of control found in applications such as voltage regulation circuits for motorbikes,over-voltage crowbar prot.

16TTS16 Features

* Repetitive Peak Off-State Voltage : 1600V
* R. M. S On-State Current ( IT(RMS)= 16 A )
* Low On-State Voltage (1.7V(Max. )@ ITM)
* RoHS Compliant K AG TO-220AB K AG TO-220F PACKAGE ABSOLUTE MAXIMUM RATINGS ( TJ = 25°C UNLESS OTHERWISE SPECIFIED ) Symbol VDRM VRRM

16TTS16 Applications

* such as voltage regulation circuits for motorbikes,over-voltage crowbar protection,motor control circuits in power tools and kitchen aids , inrush current limiting circuits ,capacitive discharge ignition. The insulated fullpack package allows a back toback configuration. AK G SCHEMATIC SYMBOL FEAT

📥 Download Datasheet

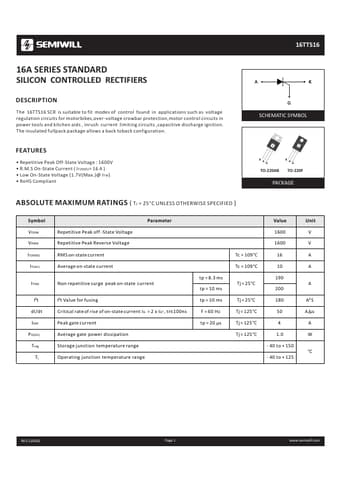

Preview of 16TTS16 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
16TTS16
Manufacturer
SEMIWILL
File Size
87.17 KB
Datasheet
16TTS16-SEMIWILL.pdf
Description
SILICON CONTROLLED RECTIFIERS
