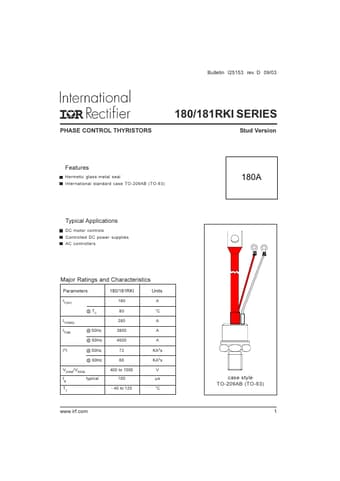

Bulletin I25153 rev. D 09/03
180/181RKI SERIES
PHASE CONTROL THYRISTORS Stud Version
Features
Hermetic glass-metal seal International standard case TO-209AB (TO-93)
180A
Typical Applications
DC motor controls Controlled DC power supplies AC controllers
Major Ratings and Characteristics
Parameters
IT(AV) @ TC IT(RMS) ITSM @ 50Hz @ 60Hz I 2t @ 50Hz @ 60Hz V DRM /V RRM tq TJ typical
180/181RKI
180 80 285 3800 4000 72 66 400 to 1000 100 - 40 to 125
Units
A °C A A A KA2s KA2s V µs °C
case style TO-209AB (TO-93)
www.irf.com
1
180/181RKI Series
Bulletin I25153 rev. D 09/03
ELECTRICAL SPECIFICATIONS Voltage Ratings
Voltage Type number Code
40 180/181RKI 80 100
V DRM /V RRM , max.
