180NQ040 - SCHOTTKY RECTIFIER

This page provides the datasheet information for the 180NQ040, a member of the 180NQ SCHOTTKY RECTIFIER family.

Datasheet Summary

Features

  • The 180NQ high current Schottky rectifier module series has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical.

📥 Download Datasheet

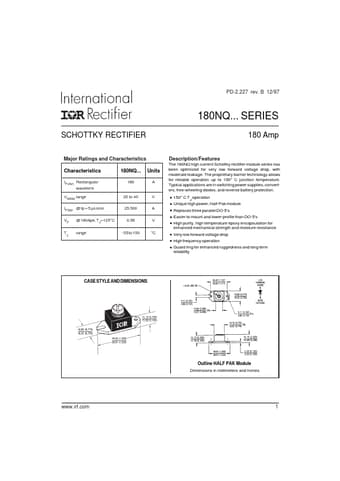

Datasheet preview – 180NQ040

📁 Similar Datasheet

  • 180NQ040-1 - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
  • 180NQ040R-1 - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
  • 180NQ045-1 - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
  • 180NQ045R-1 - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
  • 180NQ035-1 - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
  • 180NQ035R-1 - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
  • 180N10 - Power MOSFETs (IXYS)
  • 180N10B - Power MOSFET (ON Semiconductor)
  • 180N10F3 - N-channel Power MOSFET (STMicroelectronics)
  • 180N10N - Power Transistor (Infineon)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
SCHOTTKY RECTIFIER PD-2.227 rev. B 12/97 180NQ... SERIES 180 Amp Major Ratings and Characteristics Characteristics 180NQ... Units IF(AV) Rectangular waveform VRRM range IFSM @ tp = 5 µs sine VF @180Apk,TJ=125°C 180 35 to 45 25,500 0.56 A V A V TJ range - 55 to 150 °C Description/Features The 180NQ high current Schottky rectifier module series has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
