7413 - Power MOSFET

International Rectifier

7413 Description

PD- 91330F SMPS MOSFET Applications l High frequency DC-DC converters IRF7413 HEXFET® Power MOSFET RDS(on) max(mW) 11@VGS = 10V VDSS 30V ID 12A B.

7413 Features

* 2A.
* Pulse width ≤ 300µs; duty cycle ≤ 2%. ISD ≤ 7.2A, di/dt ≤ 120A/µs, VDD ≤ V(BR)DSS, TJ ≤ 150°C Data and specifications subject to change without notice. This product has been designed and qualified for the Automotive [Q101] market. Qualification Standards can be found on IR’s Web site.

7413 Applications

* l High frequency DC-DC converters IRF7413 HEXFET® Power MOSFET RDS(on) max(mW) 11@VGS = 10V VDSS 30V ID 12A Benefits l Low Gate to Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized A

📥 Download Datasheet

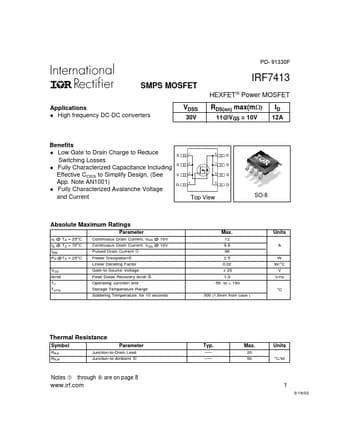

7413 Datasheet Preview — Preview of 7413 PDF

Datasheet Details

Part number: 7413
Manufacturer: International Rectifier
File Size: 123.19 KB
Datasheet: 7413_InternationalRectifier.pdf
Description: Power MOSFET
