74132 Datasheet - National Semiconductor

Quad 2-Input NAND Gates

74132 General Description

This device contains four independent gates each of which performs the logic NAND function Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing jitter-free output Connection Diagram Dual-In-Line Package Function Table Order.

74132 Datasheet (85.72 KB)

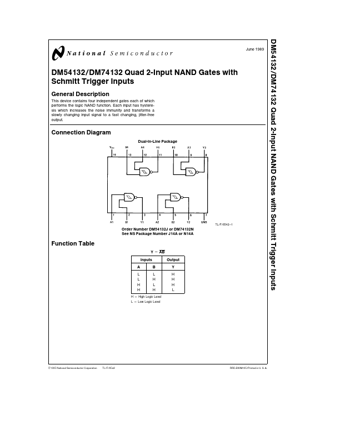

74132 Datasheet Preview — Preview of 74132 PDF

Datasheet Details

Part number:

74132

Manufacturer:

National Semiconductor

File Size:

85.72 KB

Description:

Quad 2-input nand gates.
DM54132 DM74132 Quad 2-Input NAND Gates with Schmitt Trigger Inputs June 1989 DM54132 DM74132 Quad 2-Input NAND Gates with Schmitt Trigger Inputs G.
