74131 Datasheet - ETC

74131 1-of-8 inverting decoder/demultiplexer with address register

74131 1-of-8 inverting decoder/demultiplexer with address register. + + S0 |1 + + 16| VCC S1 |2 15| /Y0 S2 |3 CLK |4 14| /Y1 74 13| /Y2 /EN2 |5 131 12| /Y3 EN1 |6 11| /Y4 /Y7 |7 GND |8 10| /Y5 9| /Y6 + + www.DataSheet4U.com .

74131 Datasheet (17.28 KB)

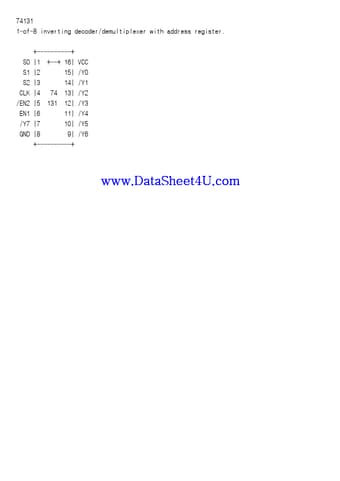

74131 Datasheet Preview — Preview of 74131 PDF

Datasheet Details

Part number:

74131

Manufacturer:

ETC

File Size:

17.28 KB

Description:

1-of-8 inverting decoder/demultiplexer with address register.
