* g TJ , Junction Temperature ( °C) Fig 12c. Maximum Avalanche Energy Vs. Drain Current IAS Fig 12b. Unclamped Inductive Waveforms 10 V QGS VG QG QGD Charge Fig 13a. Basic Gate Charge Waveform www.irf.com Current Regulator Same Type as D.U.T. 50K 12V .2F .3F D.U.T. + -VDS VGS 3mA I

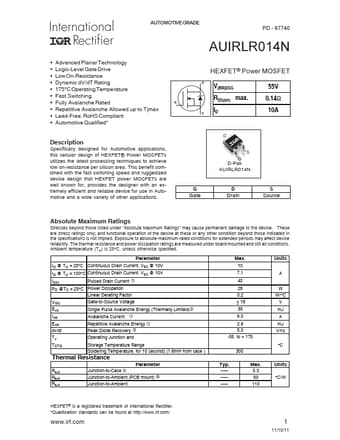

AUIRLR014N Datasheet (211.15 KB)
AUIRLR014N
International Rectifier
211.15 KB
Hexfet power mosfet.
AUTOMOTIVEGRADE
PD - 97740
* Advanced Planar Technology
* Logic-Level Gate Drive
* Low On-Resistance
* Dynamic dV/dT.
