DPA4111

Power IC Relay

International Rectifier

DPA4111 Features

* S3X power IC chips n 25 Amp surge n 4,000 VRMS I/O isolation n 10 µA off-state leakage current n Zero-voltage turn-on n Operates without snubber n 600 V/µs off-state dv/dt n Solid-State reliability n UL recognized and CSA certified n Part Identification Part Number DPA4111 DPA4119 DPA6111 DPA6119 T

DPA4111 General Description

The DPA Series ChipSwitch uses exclusive International Rectifier S3X power integrated circuit technology to form a fully functioning solid-state relay. The S3X technology combines MOS and bipolar processes, derived from IR’s HEXFET® power MOSFET designs, to eliminate the need for both discrete compo.

DPA4111 Datasheet (61.88 KB)

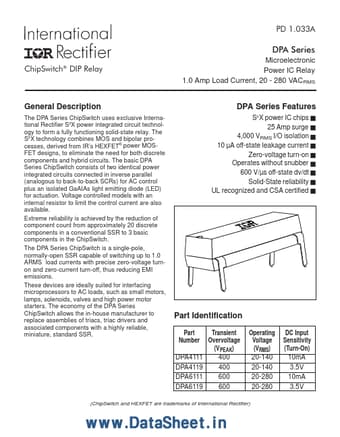

DPA4111 Datasheet Preview — Preview of DPA4111 PDF

Datasheet Details

Part number:

DPA4111

Manufacturer:

International Rectifier

File Size:

61.88 KB

Description:

Power ic relay.
