DPA6119, DPA6111 Datasheet - International Rectifier

DPA6119 - Power IC Relay

The DPA Series ChipSwitch uses exclusive International Rectifier S3X power integrated circuit technology to form a fully functioning solid-state relay.

The S3X technology combines MOS and bipolar processes, derived from IR’s HEXFET® power MOSFET designs, to eliminate the need for both discrete compo

DPA6119 Features

* S3X power IC chips n 25 Amp surge n 4,000 VRMS I/O isolation n 10 µA off-state leakage current n Zero-voltage turn-on n Operates without snubber n 600 V/µs off-state dv/dt n Solid-State reliability n UL recognized and CSA certified n Part Identification Part Number DPA4111 DPA4119 DPA6111 DPA6119 T

DPA6111_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: DPA6119, DPA6111. Please refer to the document for exact specifications by model.

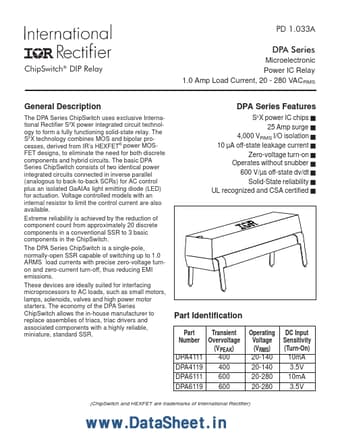

DPA6119 Datasheet Preview Page 2 DPA6119 Datasheet Preview Page 3

Datasheet Details

Part number:

DPA6119, DPA6111

Manufacturer:

International Rectifier

File Size:

61.88 KB

Description:

Power ic relay.

Note:

This datasheet PDF includes multiple part numbers: DPA6119, DPA6111.
Please refer to the document for exact specifications by model.
