DPA6111 - Power IC Relay

International Rectifier

📥 Download Datasheet

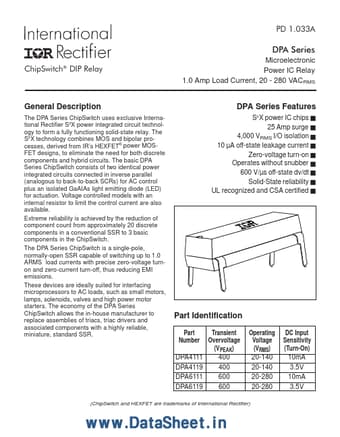

DPA6111 Datasheet Preview — Preview of DPA6111 PDF

Datasheet Details

Part number: DPA6111
Manufacturer: International Rectifier
File Size: 61.88 KB
Datasheet: DPA6111_InternationalRectifier.pdf
Description: Power IC Relay

DPA6111 Product details

Description

The DPA Series ChipSwitch uses exclusive International Rectifier S3X power integrated circuit technology to form a fully functioning solid-state relay.

Features

S3X power IC chips n 25 Amp surge n 4,000 VRMS I/O isolation n 10 µA off-state leakage current n Zero-voltage turn-on n Operates without snubber n 600 V/µs off-state dv/dt n Solid-State reliability n UL recognized and CSA certified n Part Identification Part Number DPA4111 DPA4119 DPA6111 DPA6119 Transient Overvoltage (V PEAK) 400 400 600 600 Operating Voltage (VRMS) 20-140 20-140 20-280 20-280 DC Input Sensitivity (Turn-On) 10mA 3.5V 10mA 3.5V (ChipSwitch and.
