GA100NA60U Datasheet - International Rectifier

INSULATED GATE BIPOLAR TRANSISTOR

GA100NA60U Features

* UltraFastTM: Optimized for minimum saturation voltage and operating frequencies up to 40 kHz in hard switching, > 200 kHz in resonant mode

* Very low conduction and switching losses

* Fully isolated package (2,500 Volt AC/RMS)

* Very low internal inductance (≤ 5 nH

GA100NA60U Datasheet (361.74 KB)

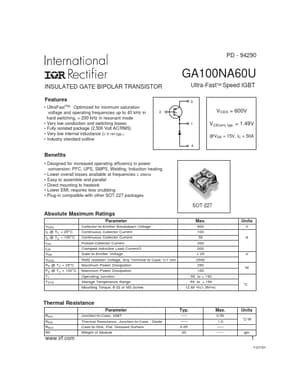

Preview of GA100NA60U PDF

Datasheet Details

Part number:

GA100NA60U

Manufacturer:

International Rectifier

File Size:

361.74 KB

Description:

Insulated gate bipolar transistor.
