HFA80FA120 - Soft Recovery Diode

Product Overview

International Rectifier

Datasheet Details

Part number	HFA80FA120
Manufacturer	International Rectifier
File Size	221.05 KB
Description	Soft Recovery Diode
Datasheet	HFA80FA120 Datasheet

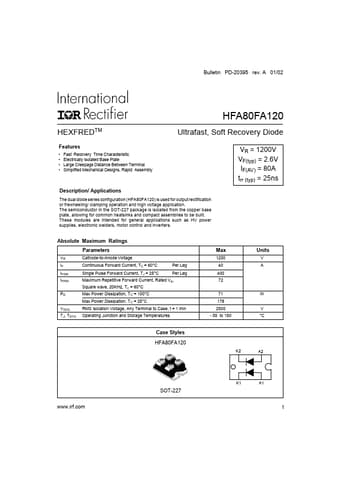

Additional preview pages of the HFA80FA120 datasheet.

Product details

Description

Applications The dual diode series configuration (HFA80FA120) is used for output rectification or frewheeling/ clamping operation and high voltage application.The semiconductor in the SOT-227 package is isolated from the copper base plate, allowing for common heatsinks and compact assemblies to be built.These modules are intended for general applications such as HV power supplies, electronic welders, motor control and inverters.Absolute Maximum Ratings Parameters VR IF IFSM IFRM PD VISOL TJ

Features

Fast Recovery Time Characteristic Electrically Isolated Base Plate Large Creepage Distance Between Terminal Simplified Mechanical Designs, Rapid Assembly Ultrafast, Soft Recovery Diode VR = 1200V VF(typ) = 2.6V IF(AV) = 80A trr (typ) = 25ns.
