HFA80NC40CSL - Soft Recovery Diode

HFA80NC40CSL Description

www.DataSheet.co.kr PD -2.472 rev.B 01/99 HFA80NC40CSL HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.

HFA80NC40CSL Features

* Reduced RFI and EMI
* Reduced Snubbing
* Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode VR = 400V VF(typ. )
* = 1V IF(AV) = 80A Qrr (typ. ) = 200nC IRRM(typ. ) = 6A trr(typ. ) = 30ns di(rec)M/dt (typ. )

HFA80NC40CSL Applications

* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM SLD-61-8 Absolute Maximum Ratings (per Leg) Parameter VR IF @ TC = 25°C IF @ TC = 100°C IFSM EAS PD @ TC = 25°C PD @ TC = 100°C TJ TST

📥 Download Datasheet

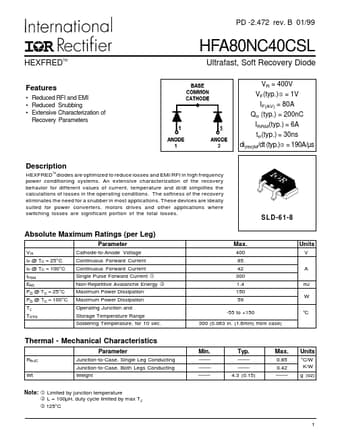

Preview of HFA80NC40CSL PDF
datasheet Preview Page 2 datasheet Preview Page 3
