HFA80NC40CSM

Soft Recovery Diode

HFA80NC40CSM Features

* Reduced RFI and EMI

* Reduced Snubbing

* Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode VR = 400V VF(typ.)

* = 1V IF(AV) = 80A Qrr (typ.) = 200nC IRRM(typ.) = 6A trr(typ.) = 30ns di(rec)M/dt (typ.)

* = 190A/µs Description HEXFRED

HFA80NC40CSM General Description

HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the.

HFA80NC40CSM Datasheet (231.87 KB)

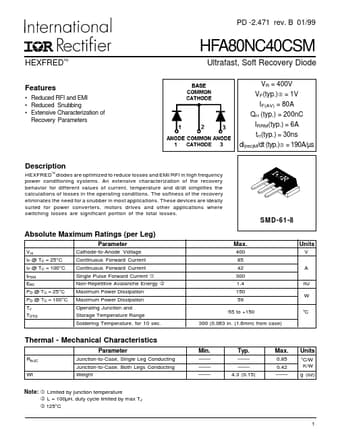

Preview of HFA80NC40CSM PDF

Datasheet Details

Part number:

HFA80NC40CSM

Manufacturer:

International Rectifier

File Size:

231.87 KB

Description:

Soft recovery diode.
