IP2002

Synchronous Buck Synchronous Buck Integrated Power Semiconductors/ Drivers & Passives

IP2002 Features

* Integrated Power Semiconductors, Drivers & Passives

* Output current 30A continuous with no derating up to TPCB = 90°C and TCASE = 90°C Operating frequency up to 1MHz Dual sided heatsink capable Very small 11mm x 11mm x 2.6mm pr

IP2002 General Description

The iP2002 is a fully optimized solution for high current synchronous buck multiphase applications. Board space and design time are greatly reduced because most of the components required for each phase of a typical discrete-based multiphase circuit are integrated into a single 11mm x 11mm x 2.6mm B.

IP2002 Datasheet (835.48 KB)

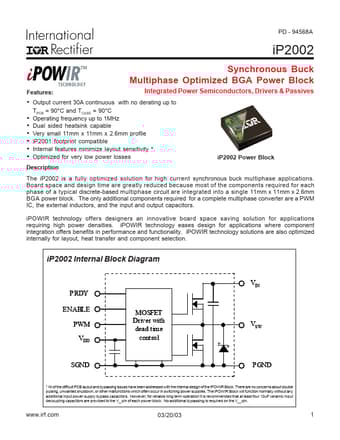

Preview of IP2002 PDF

Datasheet Details

Part number:

IP2002

Manufacturer:

International Rectifier

File Size:

835.48 KB

Description:

Synchronous buck synchronous buck integrated power semiconductors/ drivers & passives.
