IP2003A

Synchronous Buck Multiphase Optimized LGA Power Block Integrated Power Semiconductors

IP2003A Features

* • • • • • • • • • Integrated Power Semiconductors, Drivers & Passives Full function multiphase building block Output current 40A continuous with no derating up to TPCB = 100°C and TCASE = 100°C Operating frequency up to 1.0 MHz Proprietary packaging enables ultra low Rthj-case top Efficient dual

IP2003A General Description

The iP2003A is a fully optimized solution for high current synchronous buck multiphase applications. Board space and design time are greatly reduced because most of the components required for each phase of a typical discrete-based multiphase circuit are integrated into a single 9mm x 11mm x 2.2mm p.

IP2003A Datasheet (381.88 KB)

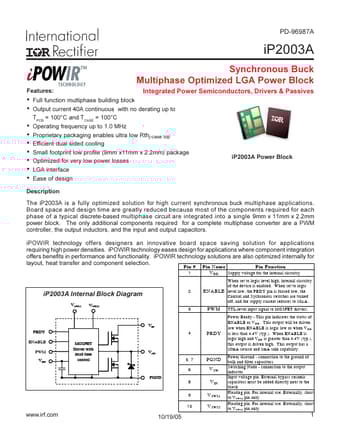

Preview of IP2003A PDF

Datasheet Details

Part number:

IP2003A

Manufacturer:

International Rectifier

File Size:

381.88 KB

Description:

Synchronous buck multiphase optimized lga power block integrated power semiconductors.
