IPS1011R, IPS1011 - INTELLIGENT POWER LOW SIDE SWITCH

IPS1011R Description

Data Sheet No.PD60235 www.DataSheet4U.com IPS1011(S)(R) INTELLIGENT POWER LOW SIDE SWITCH .
The IPS1011(S)(R) is a three terminal Intelligent Power Switch (IPS) that features a low side MOSFET with overcurrent, over-temperature, ESD protectio.

IPS1011R Features

* Over temperature shutdown Over current shutdown Active clamp Low current & logic level input ESD protection Optimized Turn On/Off for EMI Diagnostic on the input current Product Summary Rds(on) 13mΩ (max. ) Vclamp 36V Ishutdown 85

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IPS1011R, IPS1011. Please refer to the document for exact specifications by model.

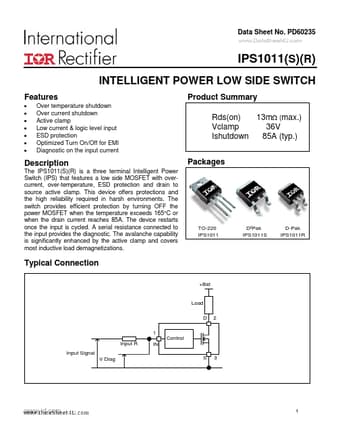

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IPS1011R, IPS1011
Manufacturer
International Rectifier
File Size
224.82 KB
Datasheet
IPS1011_InternationalRectifier.pdf
Description
INTELLIGENT POWER LOW SIDE SWITCH
Note
This datasheet PDF includes multiple part numbers: IPS1011R, IPS1011.
Please refer to the document for exact specifications by model.
