IPS7081RSPBF, IPS7081PBF Datasheet - International Rectifier

IPS7081RSPBF INTELLIGENT POWER HIGH SIDE SWITCH

The IPS7081(R)(S)PbF is a five terminal Intelligent Power Switch (IPS) with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is limited at Ilim value. Current limitation is activated until the thermal protection acts. The.

IPS7081RSPBF Features

* Over temperature shutdown (with auto-restart) Short circuit protection (current limit) Active clamp Open load detection Logic ground isolated from power ground ESD protection Ground loss protection Status feedback Produ

IPS7081PBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IPS7081RSPBF, IPS7081PBF. Please refer to the document for exact specifications by model.

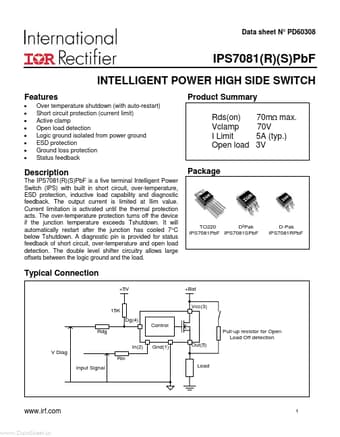

IPS7081RSPBF Datasheet Preview Page 2 IPS7081RSPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IPS7081RSPBF, IPS7081PBF

Manufacturer:

International Rectifier

File Size:

873.51 KB

Description:

Intelligent power high side switch.

Note:

This datasheet PDF includes multiple part numbers: IPS7081RSPBF, IPS7081PBF.
Please refer to the document for exact specifications by model.
