IPS7091GPBF

INTELLIGENT POWER HIGH SIDE SWITCH

IPS7091GPBF Features

* Over temperature shutdown (with auto-restart) Short circuit protection (current limit) Active clamp Open load detection Logic ground isolated from power ground ESD protection Ground loss protection Status feedback Produ

IPS7091GPBF General Description

The IPS7091GPbF is a five terminal Intelligent Power Switch (IPS) with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is limited at Ilim value. Current limitation is activated until the thermal protection acts. The over.

IPS7091GPBF Datasheet (629.95 KB)

Preview of IPS7091GPBF PDF

Datasheet Details

Part number:

IPS7091GPBF

Manufacturer:

International Rectifier

File Size:

629.95 KB

Description:

Intelligent power high side switch.

📁 Related Datasheet

IPS7091 INTELLIGENT POWER HIGH SIDE SWITCH (International Rectifier)

IPS7091PBF INTELLIGENT POWER HIGH SIDE SWITCH (International Rectifier)

IPS7091SPBF INTELLIGENT POWER HIGH SIDE SWITCH (International Rectifier)

IPS7071GPBF PROTECTED HIGH SIDE SWITCH (International Rectifier)

IPS7081PBF INTELLIGENT POWER HIGH SIDE SWITCH (International Rectifier)

IPS7081RPBF INTELLIGENT POWER HIGH SIDE SWITCH (International Rectifier)

IPS7081RSPBF INTELLIGENT POWER HIGH SIDE SWITCH (International Rectifier)

IPS7081SPBF INTELLIGENT POWER HIGH SIDE SWITCH (International Rectifier)

IPS70R1K4CE MOSFET (Infineon)

IPS70R1K4CE N-Channel MOSFET (INCHANGE)

TAGS

IPS7091GPBF INTELLIGENT POWER HIGH SIDE SWITCH International Rectifier

Image Gallery

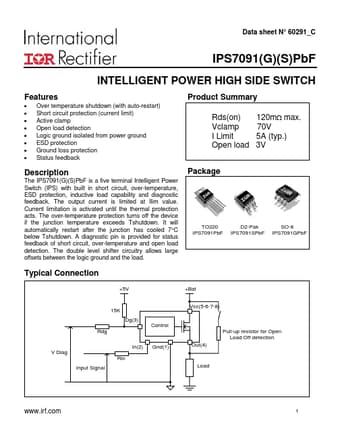

IPS7091GPBF Datasheet Preview Page 2 IPS7091GPBF Datasheet Preview Page 3
